D31M Solid Top Wrap Around Tray

D31M Solid Top Wrap Around Tray

$ 219.99

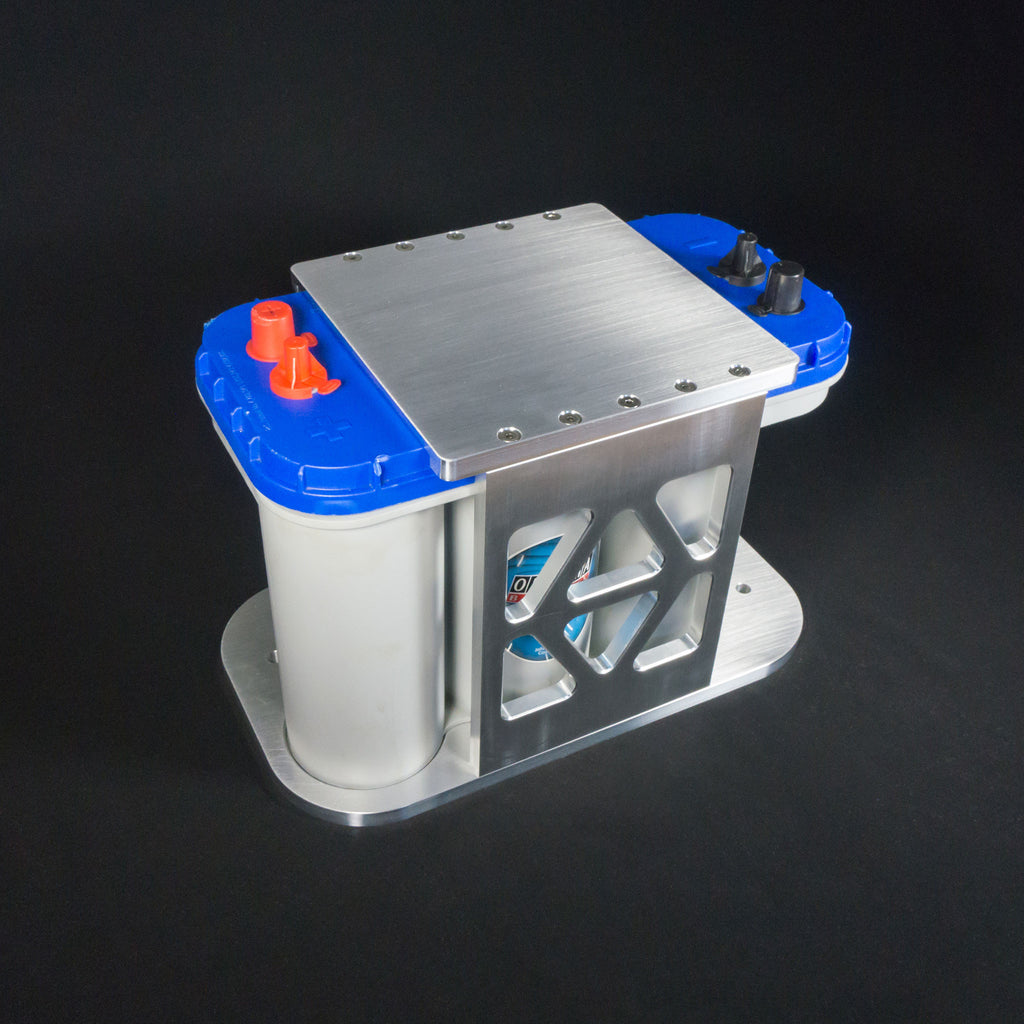

Billet Aluminum Solid Top Wrap Around Tray for your D31M Optima Battery

WE SHIP WORLDWIDE!

We specifically designed this tray to fit your Optima D31M style Blue top battery. This tray was created in our own shop, and starts as 4 pieces of Solid Billet Aluminum (6061-T6 Aircraft Grade Top Quality Aluminum). We then mill it to shape and exact size using state of the art CNC machinery. It's brand new and comes with all the bolts and fasteners you will need to assemble and install it. The tray comes with a satin brush finish and the edges have been given a chamfer to create a clean and sleek look.

Our shop has been making Optima Trays for years, and have come up with specific dimensions that follow the shape and contour of your Optima Battery to hold it tightly in place. Each of our trays are designed for a specific Optima Battery so you know when you buy this tray, it will fit exactly as described. As you can see by the pictures we pay close attention to structural integrity without sacrificing design and functionality.

To the best of our knowledge This tray is NHRA Legal! When we checked, the rules stated that the battery tray is required to be bolted to the vehicle with 3/8" bolts which come with our tray.

The tray pictured has a FREE "Satin Brush Finish".


What's included

Optima D31M Everything

1 "Solid Style" Top
1 Pair of Sides
1 "Solid Style" Bottom
20 Stainless Steel Fasteners
4 Zinc Plated 3/8" Bolts with lock washers and nuts
4 #10-24 Bolts with lock washers and nuts
1 Allen Wrench to assemble the tray
5 Year Warranty


Highlights

Optima D31M - Pocket Top The top incorporates a 1/4" pocket underneath. This allows the top of the tray to sit down around the battery, making for a secure fit. It also ensures that the top design is correctly positioned around the terminals and vents of the battery.
Optima D31M - Pocket Bottom The bottom prevents the battery from sliding out of place when it is set inside the 1/4" pocket. This pocket is specially designed to follow the round contours of the Optima battery keeping it firmly in place. The tray features two sets of mounting holes. You can use the countersunk holes with the #10-24 machine screws or the larger holes with the 3/8" bolts if you are racing with the NHRA. Both sets of hardware come with every tray and this gives you more mounting options when installing the tray.
Optima D31M - Sides The tapped holes in the side pieces have a lead-in chamfer to make it easier to assemble the tray. The chamfer helps guide the screw in the right place and also makes for a smooth fit where it meets the top and bottom pieces.
Optima D31M - Chamfer Special attention has been paid to the countersunk holes where the machine screws sit. Each screw sits just a little lower than the surface giving a professional and smooth look.
Optima D31M - 5 Year Warranty Our trays come with an incredible 5 Year Warranty! It is because we are so confident that our trays will stand the test of time that we are offering such an amazing warranty period. Should you ever need replacement parts, we are here to make it easy and painless! We even cover all shipping costs within the USA.


Technical Data

The L x W dimensions for this Optima Battery Tray are exactly 13.57" x 7.6". This means that you will need a minimum of a 13 5/8" x 7 5/8" area for the tray to fit. The tray also makes your battery sit 1/4" higher because of the tray under the battery.
