6V Rigid Clamp Tray

6V Rigid Clamp Tray

$ 109.99

Billet Aluminum Rigid Clamp Tray for your 6V Optima Battery

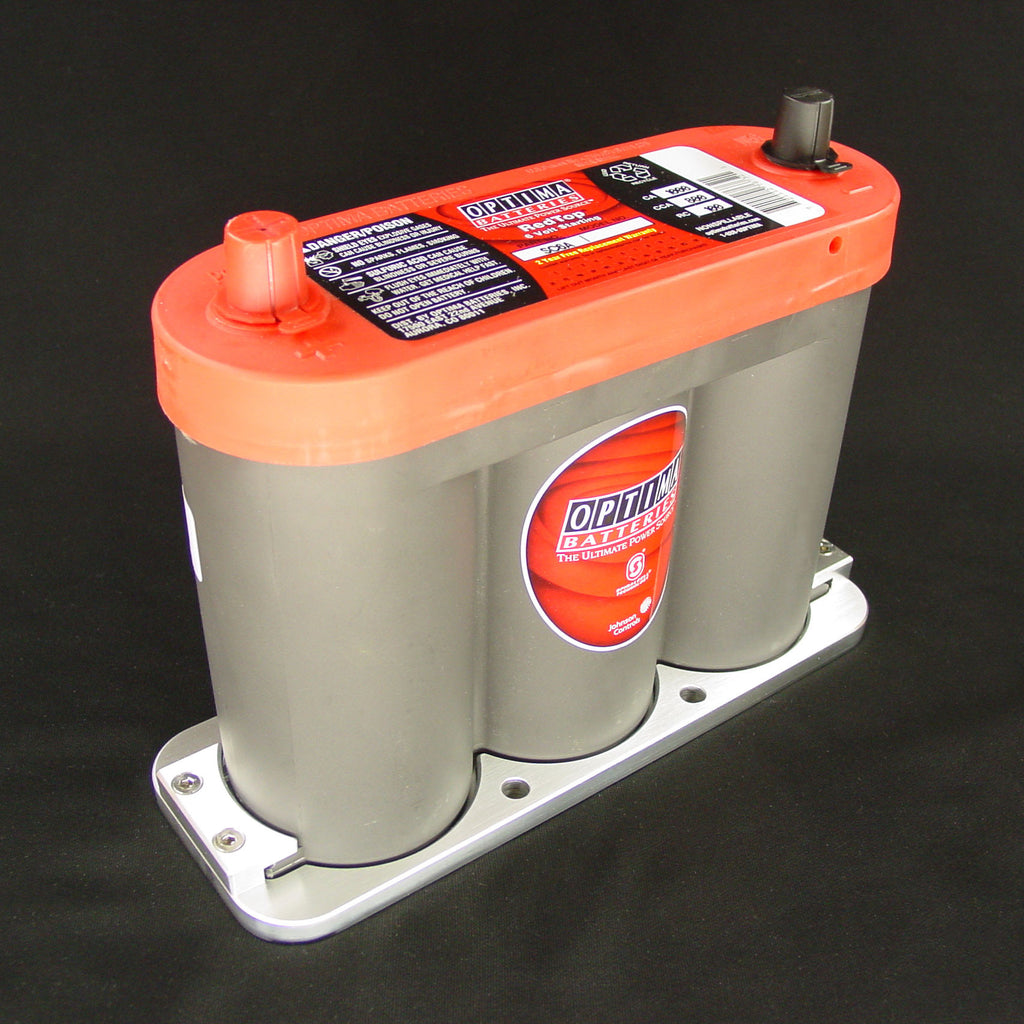

We specifically designed this tray to fit your Optima 6V style Red top battery. This tray was created in our own shop, and starts as 3 pieces of Solid Billet Aluminum (6061-T6 Aircraft Grade Top Quality Aluminum). We then mill it to shape and exact size using state of the art CNC machinery. It's brand new and comes with all the bolts and fasteners you will need to assemble and install it. The tray comes with a satin brush finish and the edges have been given a chamfer to create a clean and sleek look.

Our shop has been making Optima Trays for years, and have come up with specific dimensions that follow the shape and contour of your Optima Battery to hold it tightly in place. Each of our trays are designed for a specific Optima Battery so you know when you buy this tray, it will fit exactly as described. As you can see by the pictures we pay close attention to structural integrity without sacrificing design and functionality.

To the best of our knowledge This tray is NHRA Legal! When we checked, the rules stated that the battery tray is required to be bolted to the vehicle with 3/8" bolts which come with our tray.

The tray pictured has a FREE "Satin Brush Finish".

What's included


Optima 6V Everything


1 "Solid Style" Bottom
2 Bottom Clamps
4 Stainless Steel Fasteners for Tray Assembly
4 Stainless Steel 3/8" Mounting Bolts with lock washers and nuts
4 Stainless Steel #10-24 Mounting Bolts with lock washers and nuts
1 Allen Wrench to assemble the tray
5 Year Warranty

(Click to Enlarge)

Optima 6V - Mounting Options The tray has 8 holes for mounting it to your vehicle. Use either the #10 or 3/8" Stainless Steel fasteners to mount your tray. You can always use all 8 included fasteners for super mounting strength! You have the option to choose which layout lines up with your custom installation best. The inside #10 mounting holes are covered and unseen with the battery in place.
Optima 6V - Double Mounted With 2 screws on each end clamp to hold down your 6V Optima battery, you know it will be held securely to the tray. We have designed these clamps to hold along the entire flat area of the Optima battery near the clamp for maximum holding force.
Optima 6V - Pocket Bottom The bottom prevents the 6V Optima battery from sliding out of place because the battery sits down inside a 1/4" pocket. This pocket is specially designed to follow the contoured shape of your Optima battery keeping it firmly in place.
Optima 6V - Chamfer Special attention has been paid to the countersunk holes where the machine screws sit. Each screw sits just a little lower than the surface giving a professional and smooth look.
Optima 6V - 5 Year Warranty Our trays come with an incredible 5 Year Warranty! It is because we are so confident that our trays will stand the test of time that we are offering such an amazing warranty period. Should you ever need replacement parts, we are here to make it easy and painless! We even cover all shipping costs within the USA.

Technical Data

The L x W dimensions for this 6V Optima Battery Tray are exactly 11" x 3.9". This means that you will need a minimum of a 11 1/16" x 4" area for the tray to fit. The tray also makes your battery sit 1/4" higher because of the plate under the battery.

Optima 6V Dimensions
