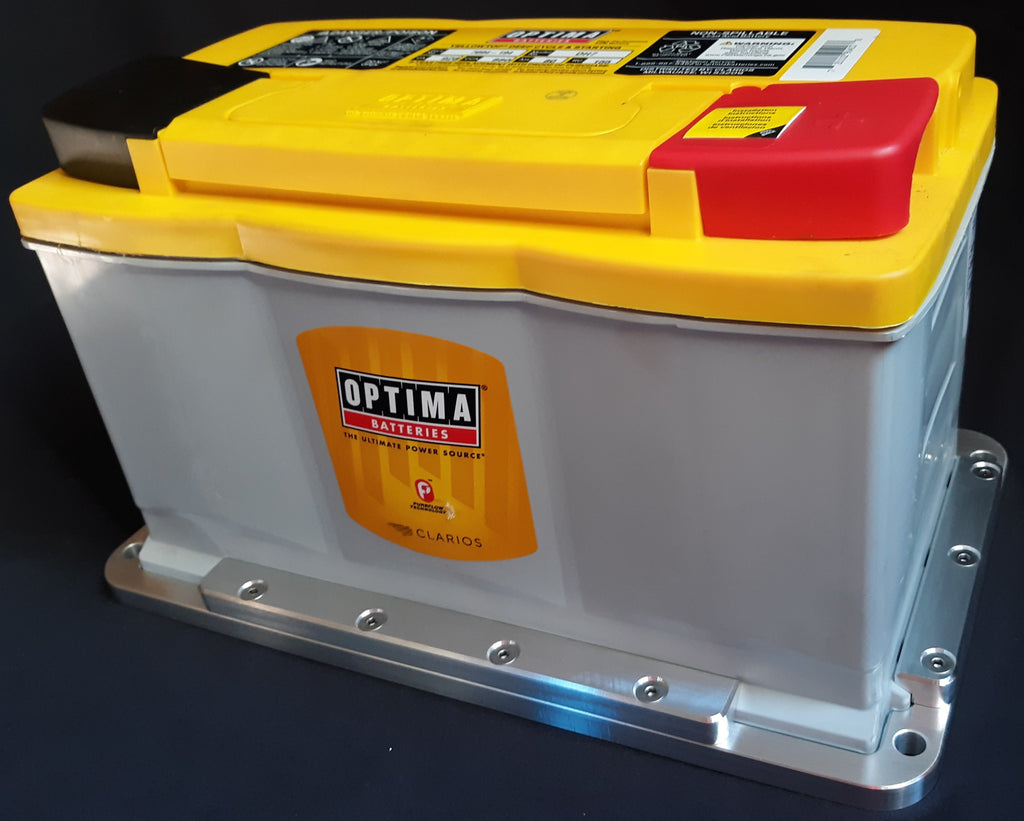

Optima DH7 Battery Tray - Battery sitting in tray

DH7 Rigid Clamp Tray

$ 159.99

Billet Aluminum Rigid Clamp Tray for your DH7 Optima Battery

WE SHIP WORLDWIDE!

I specifically designed this tray to fit your Optima DH7 style Yellow top battery. This tray was created here at my Barch Designs shop It starts as 5 pieces of Solid Billet Aluminum (6061-T6 Aircraft Grade Top Quality Aluminum). Then It's milled to shape and exact size using state of the art CNC machinery. It's brand new and comes with all the bolts and fasteners you will need to assemble and install it. The tray comes with a satin brush finish and the edges have been given a chamfer to create a clean and sleek look.

My shop has been making Optima Trays for years, and have come up with specific dimensions that follow the shape and contour of your Optima Battery to hold it tightly in place. Each of our trays are designed for a specific Optima Battery so you know when you buy this tray, it will fit exactly as described. As you can see by the pictures we pay close attention to structural integrity without sacrificing design and functionality.

To the best of our knowledge This tray is NHRA Legal! When we checked, the rules stated that the battery tray is required to be bolted to the vehicle with 3/8" bolts which come with our tray.

The tray pictured has a FREE "Satin Brush Finish".


What's included

Optima DH7 Battery Tray - Everything Included

1 Aluminum "Solid Style" Bottom
4 Aluminum Bottom Clamps
14 Stainless Steel Fasteners
4 Stainless 3/8" Bolts with lock washers and nuts
4 #10-24 Stainless Bolts with lock washers and nuts
1 Long 9" Allen Wrench to assemble the tray
5 Year Warranty


Highlights

Optima DH7 Battery Tray - Two Mounting Hole Size Options The tray comes with 4 3/8" mounting bolts which are used to hold the battery tray in place. Optionally you can also use the extra 4 screws in the 4 countersunk mounting holes. They are there to give you more mounting options for your vehicle or boat. You can always use all 8 included fasteners for super mounting strength!
Optima DH7 Battery Tray - Clamps Hold Tight
With 3 or 4 screws on each clamp to hold down your Optima battery, you know it will be held securely to the tray. We have designed these clamps to hold along the entire flat area of the Optima battery near the clamp for maximum holding force.
Optima DH6 Tray Countersunk holes All of our bottoms prevent the battery from sliding out of place when it is set inside the 1/4" pocket. This pocket is specially designed to follow the contour of the Optima battery keeping it firmly in place.
Optima DH6 Tray Countersunk holes
Special attention has been paid to the countersunk holes where the machine screws sit. Each screw sits just a little lower than the surface giving a professional and smooth look.
Optima DH6 - 5 Year Warranty My trays come with an incredible 5 Year Warranty! It is because I create quality trays that stand the test of time that I am offering such an amazing warranty period. Should you ever need replacement parts, we are here to make it easy and painless! I even cover all shipping costs within the USA.


Technical Data

Optima DH7 Battery Tray Dimensions


The L x W dimensions for this Optima Battery Tray are exactly 13.405" x 7.850". This means that you will need a minimum of a 13 1/2" x 7 7/8" area for the tray to fit. The tray also makes your battery sit 1/4" higher because of the tray under the battery.
